D-type polyurethane fender

D-type polyurethane fender

  • D-type polyurethane fender
  • D-type polyurethane fender
D-type polyurethane fender
Datos del producto:
Lugar de origen: Qingdao, China
Nombre de la marca: Luhang
Certificación: ISO14409
Número de modelo: LHA2
Pago y Envío Términos:
Cantidad de orden mínima: 1 Uds.
Precio: Negociable
Detalles de empaquetado: Película en palllet
Tiempo de entrega: 10 ~ 15 días laborables
Condiciones de pago: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 100pcs/mes
Contacto
Descripción detallada del producto

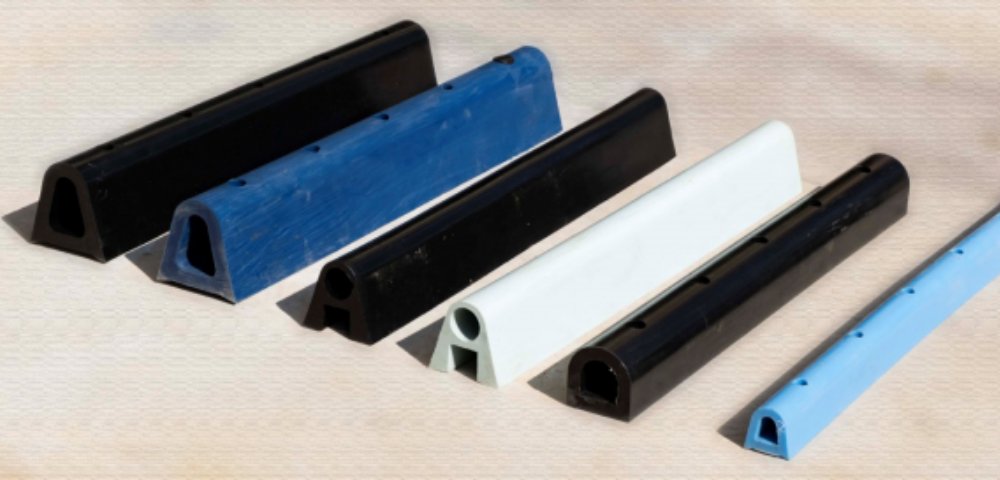

D-type polyurethane fender



1. The cross-section of the D-type fender is semi-circular and it is hollow throughout.
2. It has a large energy absorption capacity, low reaction force and light weight.
3. It is easy to install and maintain, and is suitable for smaller public vessels and yachts. Our company has currently developed six types of D-type polyurethane fenders for selection: D-200/200, D-150/150, D-100/100, D-100/80, D-80/60, D-70/70 and D-60/50.

D-type polyurethane fender 0

D-type polyurethane fender 1D-type polyurethane fender 2

Products Specification







Serial Number Model Specification (Width × Height × Length) MM Weight (KG)
1 Type D 200×200×1000 16
2 Type D 150×150×1000 10.6
3 Type D 100×100×1000 6.2
4 Type D 100×80×1000 6
5 Type D 80×60×1000 3.4
6 Type D 70×70×1200 3.3
7 Type D 60×50×1000 1.6



Installation method

D-type polyurethane fender 3D-type polyurethane fender 4

Installation Instructions:

1. Weld the fixing bolts at the corresponding positions on the hull according to the installation diagram.

2. Install the fender on the hull as shown in the figure and fasten it with bolts.
